Novastar H5 Video Wall Splicer
0 Comment
2.109,60 EUR

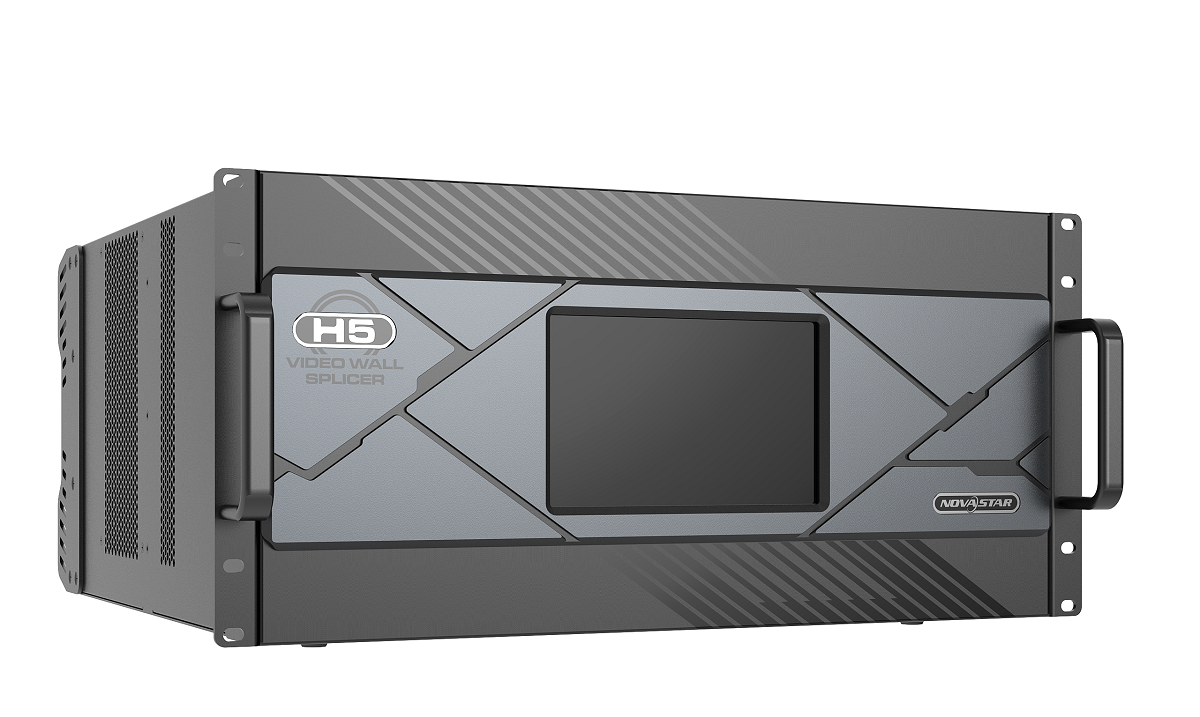

Novastar H5 Videowall Splicer
The Novastar H5 is NovaStar's latest generation of video wall splicers, featuring superior image quality and designed specifically for fine pitch LED displays. The Novastar H5 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration, as well as "hot-swapping" of input and output boards. Thanks to its excellent features and stable performance, the H5 can be used in a wide range of applications.
Hardware Features
Two different types of 4K Sending Cards:
H_20xRJ45: Manages up to 13 million pixels
H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
Different configurations possible on one Sending Card:
4x 2K×1K@60Hz
2x 4K×1K@60Hz
1x 4K×2K@60Hz
Online monitoring for all input & output cards
"Hot-Swap" function for all in- & output cards
IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
Automatic decryption of HDCP protected sources
multi-screen management
web control
Specifications
Max. Number of input cards: 10
Max. Number of input channels: 40
Max. Number of output cards: 3
Max. Loading Capacity: 39,000,000 Pixels
Max. Number of layers: 48
general specifications:
Supply voltage: AC 100-240V, 50/60HZ
Power consumption: 400Watt
Dimensions: 482.6 x 532.8 x 228.2mm (WxDxH)
Weight: 25kg
