Novastar MRV208 LED Receiver Card Specification

Novastar MRV208 LED Receiver Card is a universal receiving card , with a maximum load of 256×256 pixels per card.

• supports  color correction by lighting
• fast light and dark line adjustment, 3D, etc

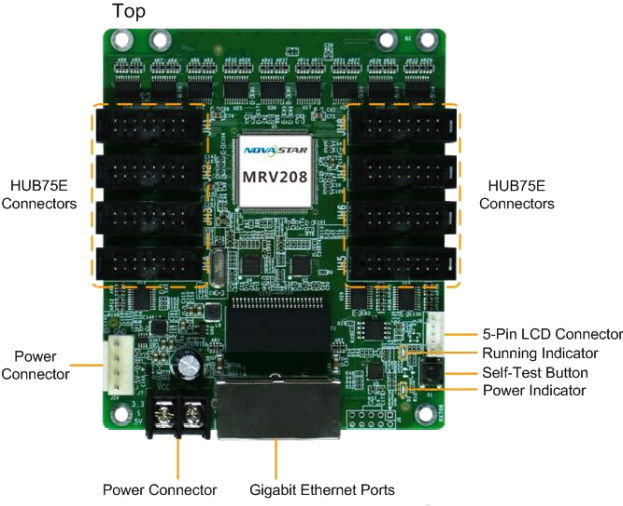

• uses 8 standard HUB7SE interfaces for communication
• supporting up to 16 groups of RGB parallel data.
• Hardware design in line with EMC standards

Product nameNovastar MRV208



NovaStar MRV208 Receiving Cards feature advanced monitoring capabilities, allowing users to check both temperature and voltage levels of the card itself. Additionally, they can assess the network communication quality between the transmitting equipment and the receiving card, as well as between multiple receiving cards. This functionality of NovaStar MRV208 Receiving Card ensures reliable performance and helps maintain optimal operating conditions for the entire display system.
NovaStar MRV208 Receiving Card supports three backup modes to ensure uninterrupted display operation: loop backup, configuration parameter backup, and dual program backup. These modes work together to maximize the smooth playback of the screen, offering redundancy and reliability in various scenarios.
NovaStar MRV208 Receiving Card Specifications:
-Maximum Loading Capacity:256 ×256 pixels
-Input voltage:DC 3.3 V to 5.5 V
-Rated current:0.5 A
-Rated power consumption:2.5 W
-Operating Temperature:–20°C to +70°C
-Operating Humidity:10% RH to 90% RH, non-condensing
-Storage Temperature:–25°C to +125°C
-Storage Humidity:0% RH to 95% RH, non-condensing
-Certifications:RoHS, EMC Class A
