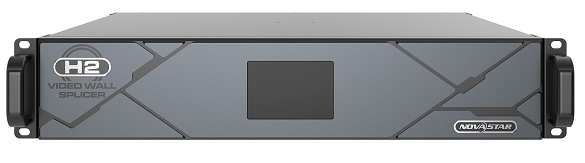

Novastar H2 Video Wall Splicer
0 Comment
600,00 EUR + VAT
795,00 EUR + VAT
Market Price
1.000,00 EURO + KDV
Price
795,00 EUR + VAT
Novastar H2 Video Wall Splicer is part of NovaStar's latest generation of video wall splicers, which feature outstanding image quality and are specifically designed for fine-pitch LED displays. Novastar H2 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration, as well as "hot-swapping" of input and output boards. Thanks to its excellent features and stable performance, the H2 can be used in a wide range of applications.
Hardware Features
Two different types of 4K Sending Cards:
H_20xRJ45: Manages up to 13 million pixels
H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
Different configurations possible on one Sending Card:
4x 2K×1K@60Hz
2x 4K×1K@60Hz
1x 4K×2K@60Hz
Online monitoring for all input & output cards
"Hot-Swap" function for all in- & output cards
IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
Automatic decryption of HDCP protected sources
multi-screen management
web control
Specifications
Max. Number of input cards: 4
Max. Number of input channels: 16
Max. Number of output cards: 2
Max. Loading Capacity: 26,000,000 Pixels
Max. Number of layers: 32
general specifications:
Supply voltage: AC 100-240V, 50/60HZ
Power consumption: 210Watts
Dimensions: 482.6 x 88.1 x 455mm (WxDxH)
Weight: 15.6kg
