Novastar H9 Video Wall Splicer
0 Comment
2.667,00 EUR + VAT

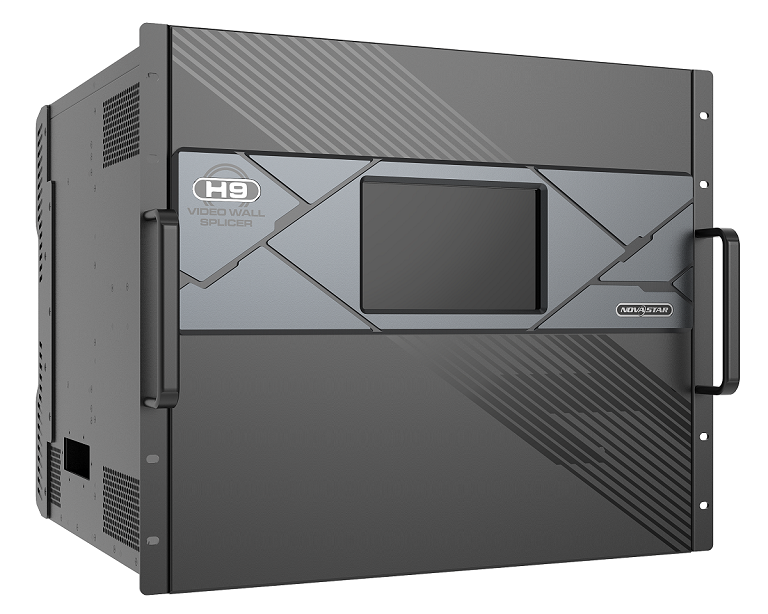

Novastar H9 Videowall Splicer
The Novastar H9 is NovaStar's latest generation of video wall splicers, featuring outstanding image quality and designed specifically for fine-pitch LED displays. The Novastar H9 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration, as well as "hot-swapping" of input and output boards. Thanks to its excellent features and stable performance, the Novastar H9 can be used in a wide range of applications.
Hardware Features
Two different types of 4K Sending Cards:
H_20xRJ45: Manages up to 13 million pixels
H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
Different configurations possible on one Sending Card:
4x 2K×1K@60Hz
2x 4K×1K@60Hz
1x 4K×2K@60Hz
Online monitoring for all input & output cards
"Hot-Swap" function for all in- & output cards
IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
Automatic decryption of HDCP protected sources
multi-screen management
web control
Specifications
Max. Number of input cards: 15
Max. Number of input channels: 60
Max. Number of output cards: 5
Max. Loading Capacity: 65,000,000 Pixels
Max. Number of layers: 80
general specifications:
Supply voltage: AC 100-240V, 50/60HZ
Power consumption: 450Watts
Dimensions: 482.6 x 533 x 405.8mm (WxDxH)
Weight: 35kg
