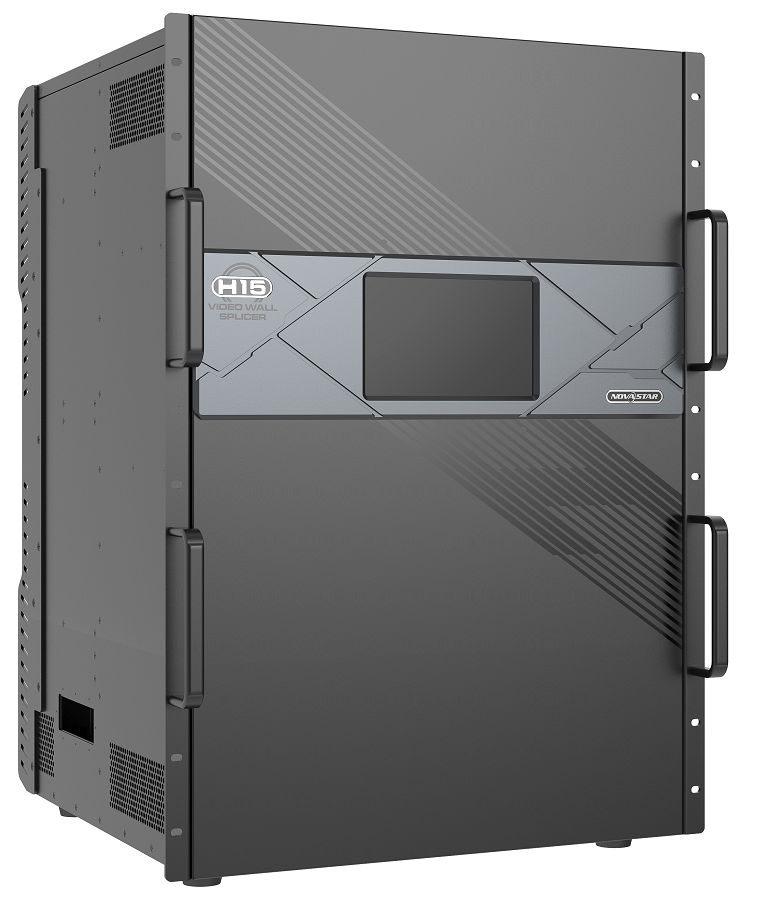

Novastar H15 Video Wall Splicer
Novastar H15 Video Wall Splicer
The Novastar H15 Video Wall Splicer is one of NovaStar's latest generation of video wall splicers, which offer excellent image quality and are specifically designed for fine-pitch LED displays. The H15 can work either as a splicer, which integrates both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable and allows for flexible configuration, as well as "hot-swapping" of input and output cards. Thanks to Novastar H15 Video Wall Splicer's excellent features and stable performance, the H15 can be used in a wide range of applications.
Novastar H15 Video Wall SPLICER HARDWARE FEATURES:
Two different types of 4K Sending Cards available:
-H_20xRJ45: Manages up to 13 million pixels
-H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
Different configurations possible on one sending card:
-4x 2K×1K@60Hz
-2x 4K×1K@60Hz
-1x 4K×2K@60Hz
-Online monitoring for all input and output cards
-"Hot-swap" function for all input and output cards
-IP Input Card H_2xRJ45 supports up to 100 IP cameras incl. Input Mosaic
-Automatic decryption of HDCP protected sources
-Multi-Screen Management
-Web Control
Novastar H15 Video Wall Splicer Specifications:
-Max. number of input cards: 30
-Maximum number of output cards: 10
-Max. number of input channels: 120
-Max. Loading Capacity: 130,000,000 pixels
-Maximum number of layers: 160
Novastar H15 Video Wall Splicer General Specifications:
-Supply voltage: AC 100-240V, 50/60HZ (The device comes with dual power supplies. Two backup power supplies are available as an option)
-Power Consumption: 900Watt
-Dimensions: 482.6 x 683.0 x 533.0mm (WxDxH)
-Weight: 61.8kg
All input/output cards must be ordered separately.
The Novastar H15 Video Wall Splicer is an advanced solution designed for creating stunning video walls with seamless content playback. Ideal for both indoor and outdoor applications, this powerful splicer enhances your display capabilities by allowing for effortless integration of multiple video sources.
Key Features:
-
High-Performance Processing: The H15 ensures smooth video playback with high resolution, making it perfect for dynamic presentations and live events.
-
Multiple Input Options: Supports a variety of input formats, including HDMI and DisplayPort, enabling flexibility in connecting different devices.
-
Seamless Image Splicing: Offers precise control over content distribution across multiple screens, eliminating gaps and ensuring a cohesive visual experience.
-
User-Friendly Interface: Easy to set up and operate, the H15 comes with an intuitive interface that simplifies configuration and content management.
-
Robust Compatibility: Works seamlessly with other Novastar products, ensuring a fully integrated LED display system.
Enhance your visual presentations with the Novastar H15 Video Wall Splicer, the perfect tool for creating impactful and immersive video wall experiences.
